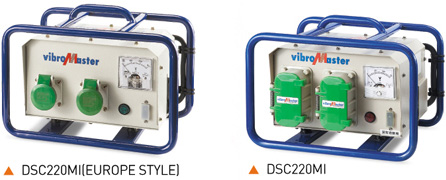

Vibromaster DSC Series are the micro inverter specially
designed to supply the continuously stable electricity with the motor-in-head vibrator.
Equipped with intelligent power module controlled circuit protector having the ability to
react on the suddendrop of input voltage.
- • No separation of materials.
- • Fine surface of concrete without air bubbles.
- • The expansion of the working radius to maximun 600m
- • Higher improvement of concrete solidity.
- • Removing the cause of electric shock by using 42~48V
- • Decrese of working weight and work forces.
| Technical Data | DSC-120MI | DSC-220MI |
|---|---|---|
| Input power(Kva) | 2.5 | 2.5 |
| Input voltage(V) | 100 / 200 | |
| Input current(A) | 6.0 | 10.0 |
| Input frequency(Hz) | 50~60 | |
| Input phase(Ø) | 1 | |
| Output power(Kva) | 2.0 | 2.0 |
|---|---|---|
| Output voltage(V) | 48 | |
| Output current(A) | 25.0 | 25.0 |
| Output frequency(Hz) | 240 | |
| Output phase(Ø) | 3 | |
| Number of outlets | 1 | 2 |
| Dimensions(W x L x Hmm) | 240 x 240 x 210 | 335 x 270 x 260 |
| Weight(Kg) | 6.0 | 6.7 |
? Weight as shown above does not include the weight of cable.
