High Frequency Poker Vibrators
VM series is equipped with newest design motor for work more
efficiency with less heat built-up.

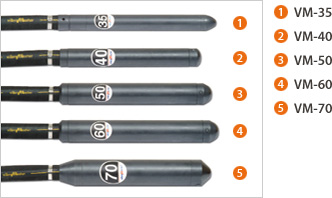

| Technical Data | VM-35 | VM-40 | VM-50 | VM-60 |
|---|---|---|---|---|
| Head diameter(mm) | 35 | 40 | 50 | 60 |
| Head length(mm) | 360 | 320 | 320 | 360 |
| Head weight(kg) | 2.3 | 2.8 | 4.3 | 7.2 |
| Vibration(vpm) | 12,000~14,400 | ||||
|---|---|---|---|---|---|
| Voltage(V) | 42~48 | ||||
| Phase(Ø) | 3 | ||||
| Current(A) | 4.0 | 7.5 | 8.0 | 10.0 | |
| Frequency(Hz) | 200~240 | ||||

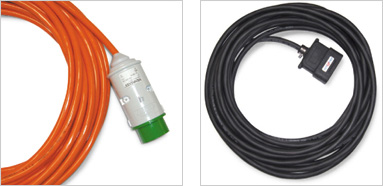

※ Our items the rubber hose and cable length is possible to change.
